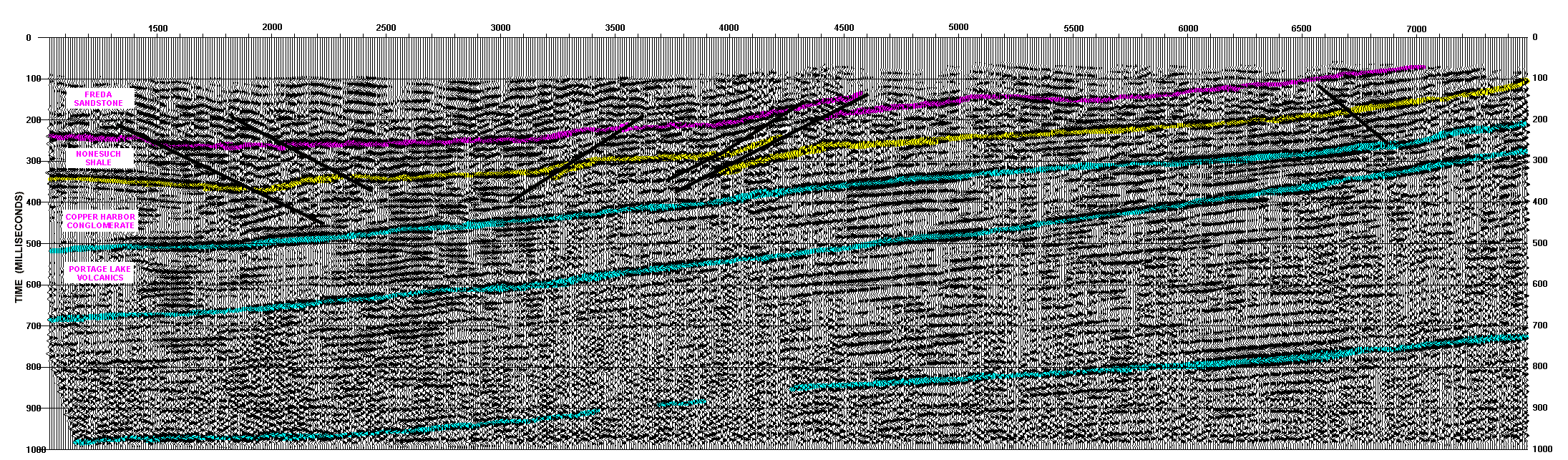

High-resolution reflection section showing faulted dipping structure of copper ore sediments (yellow) at interface of shale and conglomerate sediments. Copper mineralization originated in lower basaltic flows (blue). Mineralization layer lies in the depth range of 1000 to 2500 feet below grade.

Seismic Source: Bison EWG-4; geophone spacing: 20 feet.
